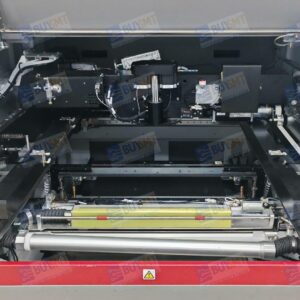

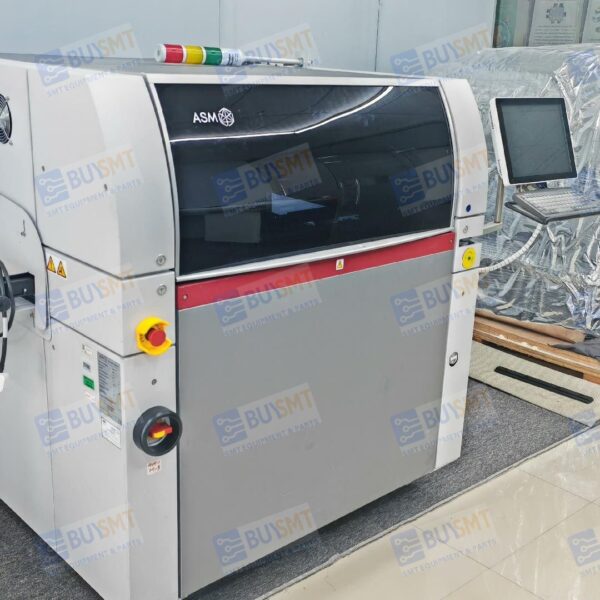

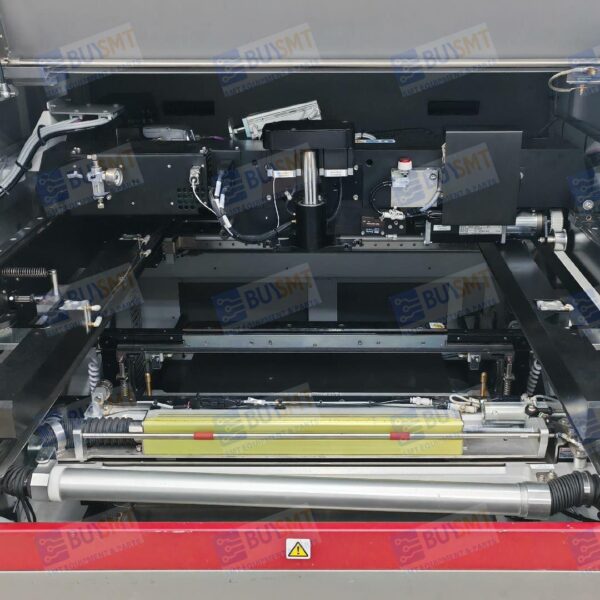

DEK NeoHorizon mask printer is capable of accommodating substrates as small as 50mm and up to 510mm as well as multiple print media according to the required processes. Even though solder paste is currently the most widely used medium, C2MI is open to testing different printable media that could generate new opportunities. Fully automated, this equipment is configured to receive feedback from ASM ProcessLens inspection equipment. Thus, when defects related to the printing of the paste or the chosen medium are seen by the inspection equipment, the corrections are directly transmitted to the printer without human intervention.
Process Capabilities:
Print Pressure: 0 to 20 kg.
Print Speed: 2 to 300 mm/sec.
Print Gap: 0 to 6 mm/sec.
Print Modes: Print/Print.

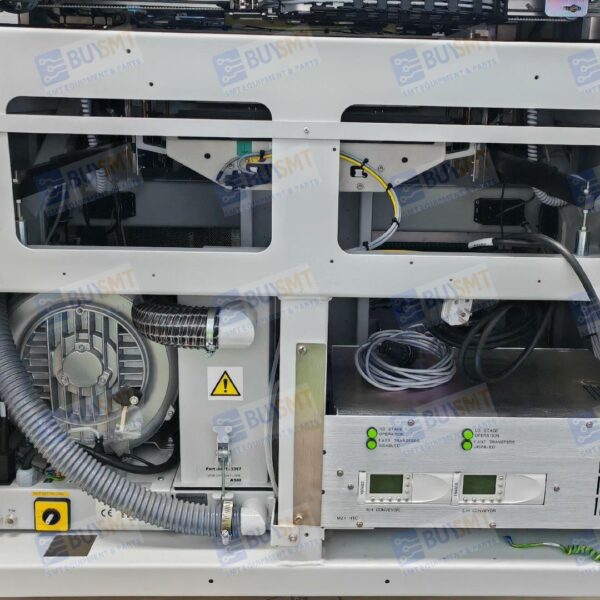

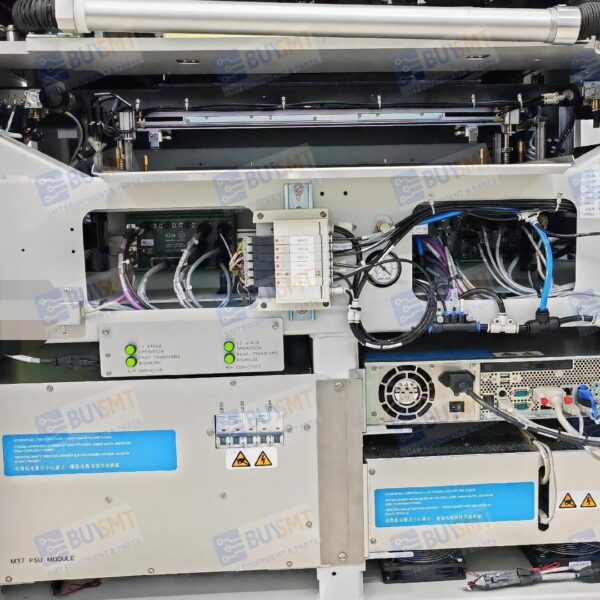

Machine Capabilities:
Machine Alignment: > 2.0 Cmk @ +/- 12.5μm, (±6 Sigma).
System Alignment: > 2.0 Cmk @ +/- 15μm, (±6 Sigma).
Wet Print: > 2.0 Cpk @ +/- 20μm, (±6 Sigma).
PCB Size: 50 X 40.5 mm (2 x 1.59 in.) to 510 X 508.5 mm (20 X 20 in.).
PCB Thickness: 0.2 X 6 mm.

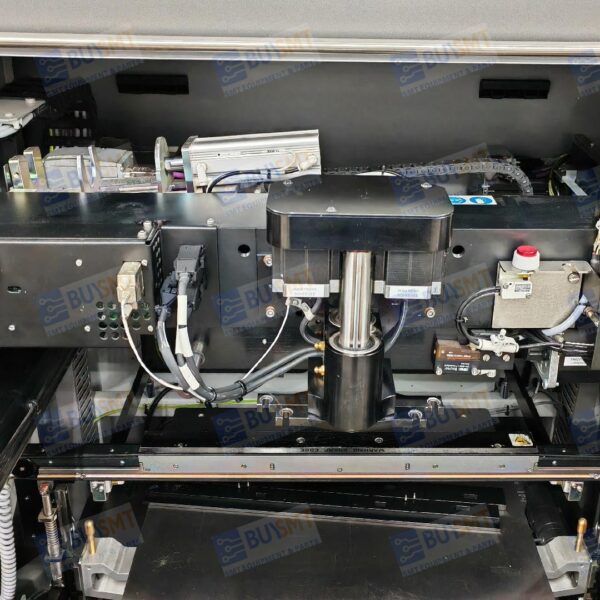

Vision System & Technology:
Camera: HawkEye® 1700 digital camera, Multi-channel. LED lighting. FOV 11.3mm x 8.7mm. Inspection window 75mm2.
Camera Positioning: Rotary motors and encoders with 4 microns resolution.
Vision System: Cognex.
Fiducial Recognition: Automatic fiducial teach.
Fiducials: 2 or 3.
Fiducials Types: Synthetic fiducial library or unique pattern recognition.
Fiducial Size: 0.1 to 3 mm.
Fiducial Locations: Anywhere on substrate
Screen Frame Size (maximum): 736 x 736 mm (29 x 29 in.).
Screen Frame Thickness: 25 to 38 mm (1 to 1.5 in.).
Image Position: Front Centre Custom.
