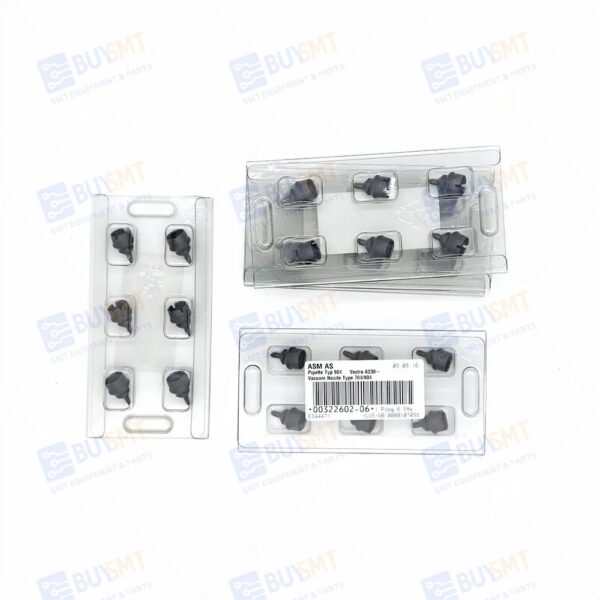

ASM SIPLACE Siemens Nozzle 738/938 – 00322592-05 – Original SMT Pick-and-Place Nozzle

SIEMENS SMT Parts

At BUYSMT, we specialize in providing high-quality, cost-effective SIEMENS/ASM SMT accessories. Our inventory includes both original brand-new and professionally refurbished used parts, ensuring you have access to a comprehensive range of components for your production line needs.

INQUIRE NOW >>>

EXPERIENCED
With over 20 years in the SMT industry, BUYSMT has been a trusted partner for electronics manufacturers worldwide. Our deep understanding of SMT processes and equipment ensures that we can meet your specific production needs with precision and expertise.
TRUSTWORTHY
At BUYSMT, we uphold the highest standards of honesty and integrity. Our commitment to quality and customer satisfaction has earned us a reputation as a reliable supplier of SMT equipment and parts.
QUICK RESPONSE
Our team is readily available to assist you. Whether through our website’s live chat feature, WhatsApp, or email, we ensure prompt and effective communication to address your inquiries and support needs.
AFTER-SALES SUPPORT
We stand behind our products with comprehensive after-sales service. Should any issues arise during the warranty period, we offer hassle-free returns and exchanges to ensure your operations continue smoothly.
OTHERS SIEMENS SPARE PARTS
00116110S02
Satz-Segmente (12 St) SIPLACE 80 V.II
SET PLACEMENT HEAD SEGMENTS SIP LACE VERSION II
00116161-03
Pipettenwechsler 12 Seg. C+P Kopf F5HM
Nozzle changer for 12-Segment Collect and Place Head SIPLACE   F5 HM.Station software version 402.xxx and later. Line software version 402.xxx and later. Option includes: 7 magazines, each for 12 nozzles.
00116441-01
WPW m. BE-Tisch F5 HM  830mm, Offset-FMT
Waffle-Pack Changer for SIPLACE F5 HM combined with fixed component table for transport height 830mm. Version for 230/110V. Storage capacity of 28 WTC (Waffle Pack Tray Charrier), max. size of Waffle Pack Tray 240mm x 340mm x 13mm. Tray changeover time 2.5s. 10 feeder locations required for Waffle Pack Changer, related to righthand side of transport direction. Offset-WTC enable the 6-Segment Collect and Place Head to pick up all components from Waffle Pack Tray Carrier.
00116442-01
WPW m. BE-Tisch F5HM,900mm,Offset-FMT
Waffle-Pack Changer for SIPLACE F5 HM combined with fixed component table for transport height 900mm. Version for 230/110V. Storage capacity of 28 WTC (Waffle Pack Tray Charrier), max. size of Waffle Pack Tray 240mm x 340mm x 13mm. Tray changeover time 2.5s.. 10 feeder locations required for Waffle-Pack Changer, related to righthand side of transport direction. Offset-WTC enable the 6-Segment Collect and Place Head to pick up all components from Waffle Pack Tray Carrier.
00116443-01
WPW m. BE-Tisch F5 HM,930mm,Offset-FMT
Waffle-Pack Changer for SIPLACE F5 HM combined with fixed component table for transport height 930mm. Version for 230/110V. Storage capacity of 28 WTC (Waffle Pack Tray Charrier), max. size of Waffle Pack Tray 240mm x 340mm x 13mm. Tray changeover time 2.5s.. 10 feeder locations required for Waffle Pack Changer, related to righthand side of transport direction. Offset-WTC enable the 6-Segment Collect and Place Head to pick up all components from Waffle Pack Tray Carrier.
00116444-01
WPW m. BE-Tisch F5HM,950mm,Offset-FMT
Waffle-Pack Changer for SIPLACE F5 HM combined with fixed component table for transport height 950mm. Version for 230/110V. Storage capacity of 28 WTC (Waffle Pack Tray Charrier), max. size of Waffle Pack Tray 240mm x 340mm x 13mm. Tray changeover time 2.5s.. 10 feeder locations required for Waffle-Pack Changer, related to righthand side of transport direction. Offset-WTC enable the 6-Segment Collect and Place Head to pick up all components from Waffle Pack Tray Carrier.
00117260-03
12-Segment C+P Kopf ReConfiguration Kit
The Head Re-Configuration Kit is necessary to exchange the Collect and Place Head of SIPLACE placement stations with Head Modularity, SIPLACE F5 HM (117500), in a 12-Segment Collect and Place Head. The Kit includes: 12-Segment Collect and Place Head, Set Nozzles, Set Sleeves, Cover, Tools for Head exchange, Box for replaced Head, Technical Manual. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 12-Segment Collect and Place Head has to be ordered separately.
00117261-03
6-Segment C+P Kopf Re-Configuration Kit
The Head Re-Configuration Kit is necessary to exchange the Collect and Place Head of SIPLACE placement station with Head Modularity, SIPLACE F5 HM (117500), in a 6-Segment Collect and Place Head. The Kit includes: 6-Segment Collect and Place Head, Set Nozzles, Set Sleeves, Cover, Tools for Head exchange, Box for replaced Head, Technical Manuel. With this kit the Head exchange can be performed by trained service personnel at customer side within 8 hours. If required the automatic nozzle changer for the 6-Segment Collect and Place Head has to be ordered separately.
00117520-01
Pipettensplitting für 12-Seg C+P
By use of the option Nozzle Splitting the nozzle magazines of a 12-Segment Collect and Place Head can be equipped with different nozzle types. The nozzles are assigned to the magazines via the user interface of the station computer. Station computer software 407.04 is mandatory for this option. The option includes: installation-CD with software description, licence for one placement machine.
00118021S01
BE-Sensor für 12 Seg. C+P Kopf
The component sensor as additional optical sensor module verifies the presence / absences of a small component short just before placement / pickup respectively. Suitable for all SIPLACE S-27 HM, HF-Series and HS-xx in combination with the 12-Segment Collect and Place Head. One Package per Head is required. The component sensor requires the modular head board. This might have to be retrofitted at SIPLACE S-23 HM item no. 359488 (and in field upgraded SIPLACE S-25 HM) and SIPLACE HS-50 item no. 359489. When using the nozzle type 906 for 0201 placement the sensor is mandatory. System requirement: Station computer >= 503.01 .Line computer >= 503.01 or SIPLACE PRO 1.3.
00118100-01
Kopf Crash Sicherung
Mechanical Head Crash Protection for SIPLACE S-20, S-23 HM, S-25 HM and S-27 HM to avoid a head crash with feeders and/or feeder flaps. Restriction 6-Segment Collect and Place Head with nozzels type 820/821/921.
00118261-03
Pipettenwechsler 12 Seg. C+P Kopf S27HM
Nozzle changer for 12-Segment Collect and Place Head of the SIPLACE S-27 HM. Two nozzle changers are needed, one per head. Stationssoftware higher than 502.xx, Linesoftware higher than 502.xx. Option contains 8 magazines for 12 nozzles.
00118262-01
Pipettenwechsler 6 Seg. C+P Kopf S-27 HM
Nozzle changer for 6-Segment Collect and Place Head of the SIPLACE S-27 HM. Stationssoftware higher than 502.xx; Linesoftware higher than 502.xx. Option contains: 2 magazines for big nozzles and 3 magazines for little nozzles.
00119160-01
Satz Pipettenwechsler 12 C+P Kopf HS-xx
One set of nozzle changers for 12-Segment Collect and Place Head HS-xx. A maximum of eight are possible for SIPLACE HS-xx. A maximum of two for each gantry.Option includes: 4 nozzle changers with 5 magazines for 12 nozzles, 4 nozzle discarding devices. Station software version from 501.xx, line computer software version 501.xx.
00119161-01
Pipettenwechsler 12 Seg. C+P Kopf HS-xx
Nozzle changer for 12-Segment Collect and Place Head SIPLACE HS-xx. A maximum of eight are possible for SIPLACE HS-xx. A maximum of two for each gantry. Option includes: 5 magazines, each for  12 nozzles. Station software version from 501.xx, line computer software version from 501.xx.
