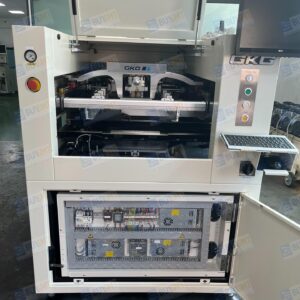

High – Precision GKG GSE Automatic Vision Solder Paste Printer ±0.02mm Printing Accuracy

GKG GSE
Economical automatic printing machine
1. Features
Advanced up-view/down-view vision system, independently controlled and adjusted lighting, high-speed moving lens, accurate alignment of PCB and template, ensuring printing accuracy of ±0.025mm.
♦ High-precision servo motor drive and PC control to ensure the stability and precision of printing, unlimited image pattern recognition technology, with ±0.01mm repeat positioning accuracy.

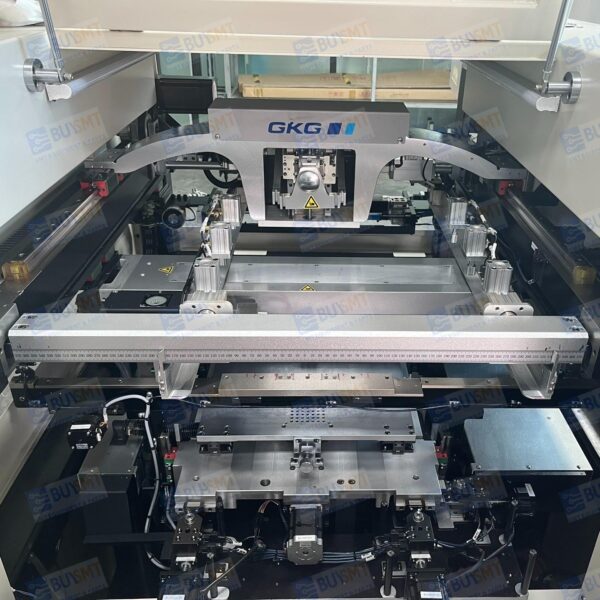

♦ Suspension printing head with a specially designed high rigidity structure. The pressure, speed and stroke of the scraper are controlled by computer servo to maintain uniform and stable printing quality.
♦ Optional manual/automatic screen bottom cleaning function. Automatic, unassisted cleaning of the bottom surface of the stencil, programmable control of dry, wet or vacuum cleaning, cleaning intervals can be freely selected, can completely remove residual solder paste in the mesh, and ensure printing quality.
♦ Combined universal workbench, which can be set to place thimbles and vacuum nozzles according to the size of the PCB substrate, making clamping faster and easier.
♦ Multifunctional board handling device, which can automatically position and clamp PCB boards of various sizes and thicknesses, with movable magnetic thimbles, vacuum platform and vacuum box, which can effectively overcome board deformation and ensure uniform printing process.
♦ With “Windows XP” operation interface and rich software functions, it has a good man-machine dialogue environment, easy to operate, convenient, easy to learn and easy to use.
It has the function of fault self-diagnosis sound and light alarm and prompting the cause of the fault.
No matter single-sided or double-sided PCB substrate can work.
It can perfectly print pads with a pitch of 0.3mm.
