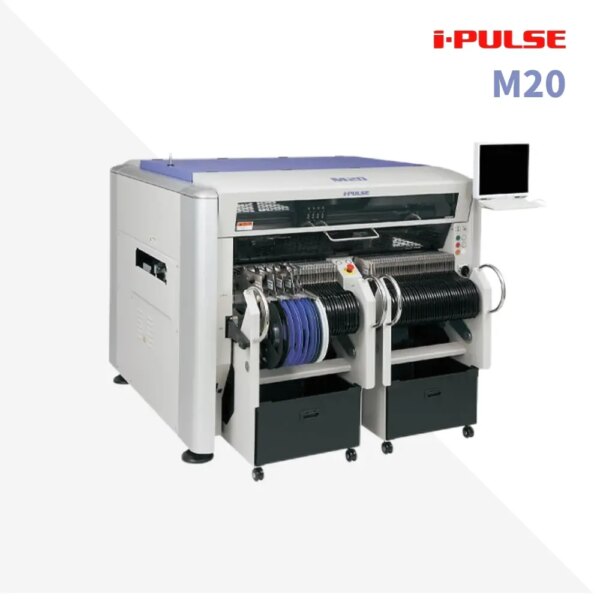

In keeping with the I-Pulse philosophy of designing flexible, high specification SMT manufacturing centres, the new M20 series is targeting both current and future manufacturing requirements.
The M20 is addressing the requirements of high feeder capacity, production flexibility and the increasing demands of new component technology and market demands.
The highly flexible M20 is available with a range of head configurations to suit capacity and technology demands. The ability to configure the M20 with head variants to handle standard SMT, odd form, plus the removable hybrid dispense option makes the M20 a uniquely flexible mounter.
|
Model |
I-PulseM20 |
|
Board size(with buffer unused) |
Min. L50 x W30mm to Max. L1,480 x W510mm*1 |
|
Board size(with input and output buffers used) |
Min. L50 x W30mm to Max. L540 x W510mm |
|
Board thickness |
0.4 – 4.8mm |
|
Board flow direction |
Left to right (Std) |
|
Board transfer speed |
Max 900mm/sec |
|
Placement speed (4 heads + 1 theta) Opt. Cond. |
0.15sec/CHIP (24,000CPH) |
|
Placement speed (4 heads + 4 theta) Opt. Cond. |
0.15sec/CHIP (24,000CPH) |
|
Placement speed (6 heads + 2 theta) Opt. Cond. |
0.12sec/CHIP (30,000CPH)*2 |
|
Placement speed (4 heads + 1 theta) IPC9850 |
19,000CPH |
|
Placement speed (4 heads + 4 theta) IPC9850 |
19,000CPH |
|
Placement speed (6 heads + 2 theta) IPC9850 |
23,000CPH*2 |
|
Placement accuracy A (?+3?) |
CHIP +/-0.040mm |
|
Placement accuracy B (?+3?) |
IC +/-0.025mm |
|
Placement angle |
+/-180 degrees |
|
Z axis control |
AC servo motor |
|
Theta axis control |
AC servo motor |
|
Component height |
Max 30mm*3 (Pre-placed components: max 25mm) |
|
Applicable components |
0402 to 120x90mm, BGA, CSP, connector, etc. |
|
Component package |
8 – 56mm tape (F1/F2 Feeders), 8 – 88mm tape (F3 Electric Feeders), stick, tray |
|
Drawback check |
Vacuum check and vision check |
|
Screen language |
English, Chinese, Korean, Japanese |
|
Board positioning |
Board grip unit, front reference, auto conveyor width adjustment |
|
Component types |
Max 144 types (8mm tape), 36 lanes x 4 |
|
Transfer height |
900 +/- 20mm |
|
Machine dimensions, weight |
L1750xD1750xH1420mm, Approx. 1450kg |
|
Power |
3-phase 200/208/220/240/380/400/416/440V +/-10% |
|
Max consumption, capacity |
1.1kW, 5.9kVA |
|
Air pressure, consumption |
0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R. |
