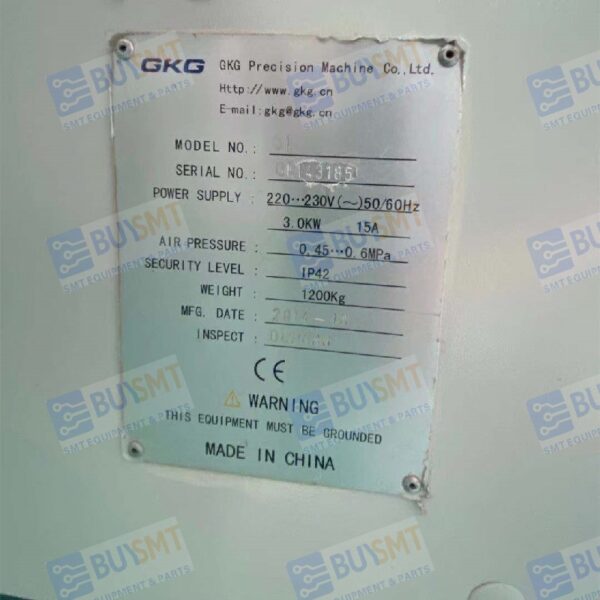

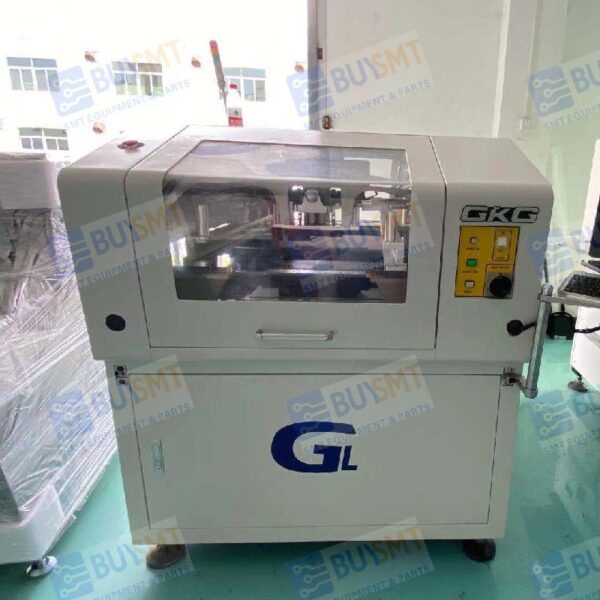

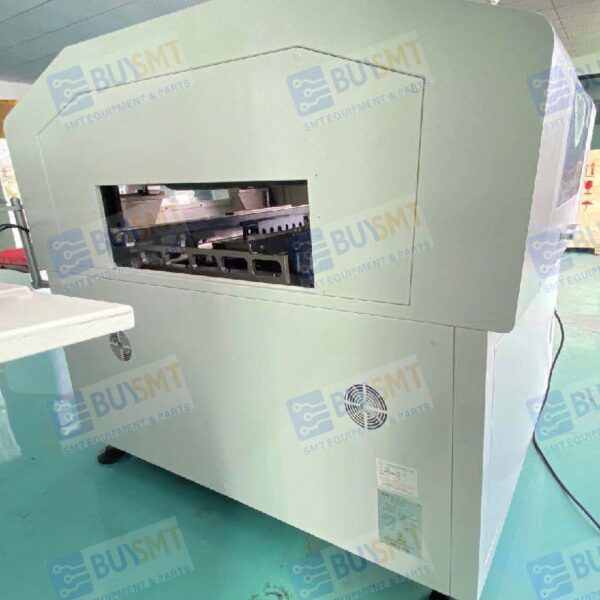

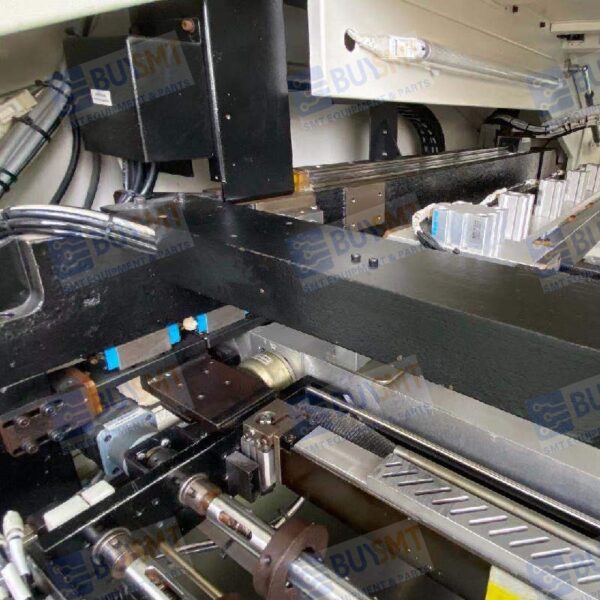

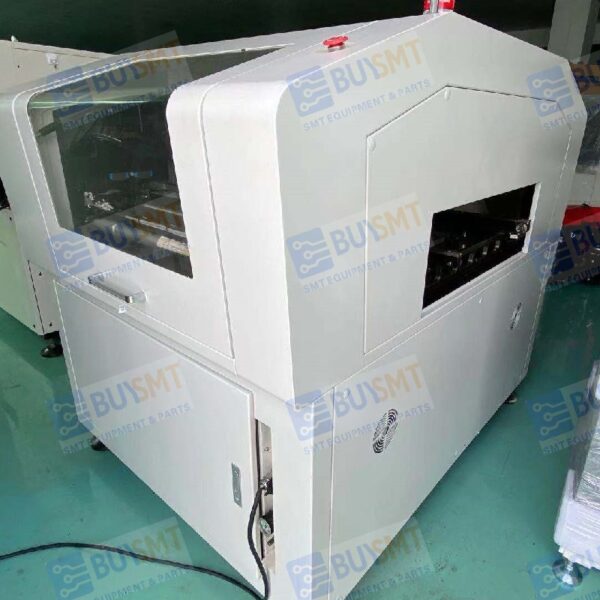

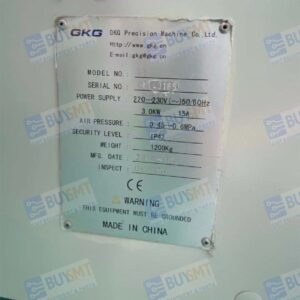

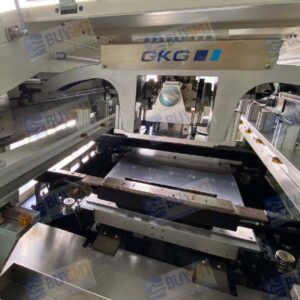

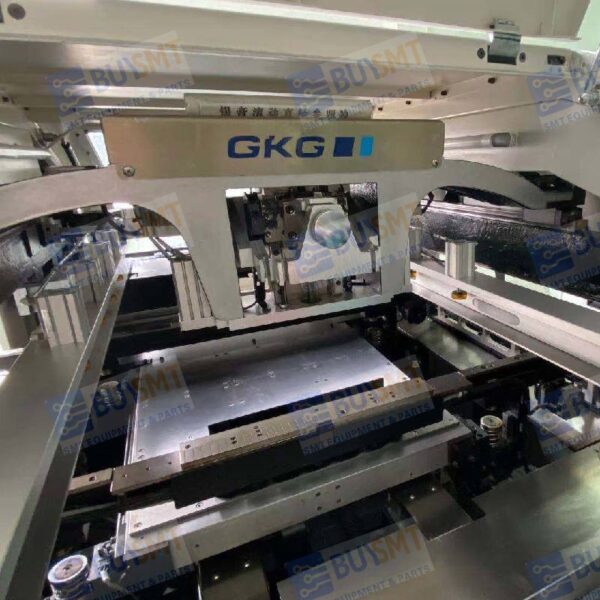

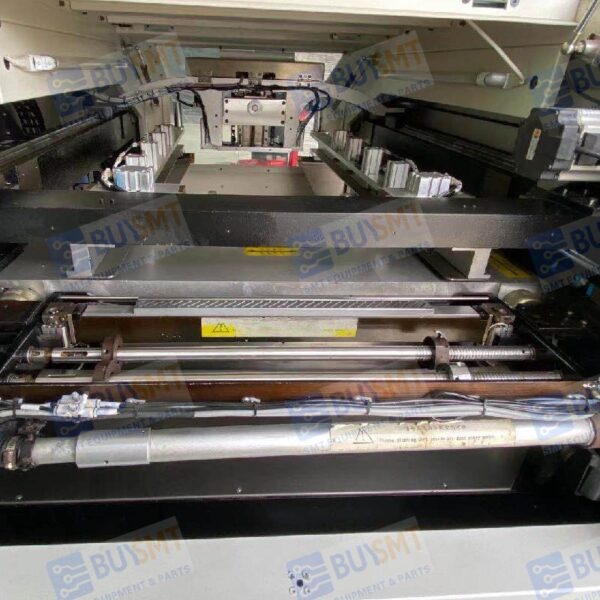

| JUKI GLG GL Automatic Stencil Printer Parameters: | ||
| Item | Parameter | |
| Repeat Position Accuracy | ±0.01mm(Test data and method are available) | |
| Printing Accuracy | ±0.025mm(Test data and method are available) | |
| Printing Speed / Cycle Time | <8s (Exclude Printing & Cleaning) | |
| Products Chanageover | <5Min | |
| Screen Stencil Size | 737x737mm | |
| PCB Size | 50X50mm-510x510mm | |
| PCB Thickness | 0.4~6mm | |
| PCB Warpage Ratio | ＜1%（Based on diagonal length） | |
| Bottom of Board Size | 15mm（Standard configuration）, 25mm | |
| Edge of Board Size | 3mm | |
| Conveyor Height | 900±40mm | |
| Conveyor Direction | Left-Right; Right-Left; Left-Left; Right-Right | |
| Conveyor Speed | 100-1500mm/sec Programmable control | |
| Board Positioning | Support System | Magnetic pin/Side support block/Flexible automatic pin（optional） |
| Clamping System | Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting | |
| Print head | Two indepandent Motorised printheads | |
| Squeegee Speed | 6~300mm/sec | |
| Squeegee Pressure | 0-10kg software control（closed-loop pressure feedback）, pressure value visible | |
| Squeegee Angle | 60°(Standard )/55°/45° | |
| Squeegee Type | Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized. | |
| Steel Mesh Separation Speed | 0.1~20mm/sec Programmable Control | |
| Cleaning Method | Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods） | |
| Table Adjustment Range | X:±3mm; Y:±7mm θ:±2° | |
| Type of Fiducial Point | Standard geometry shape of fiducial point, bonding pad / Stencil hole | |
| Camera System | Single digital camera for upward/downward vision system | |
| Air Pressure | 4~6Kg/cm2 | |
| Air Consumption | Approx 0.07m3 /min | |
| Control Method | PC Control | |
| Power Supply | AC:220±10%,50/60HZ 1Φ 1.5KW | |
| Machine Dimensions/Weight | Depends on exactly model | |
| Operation Temperature | -20°C ~ +45°C | |
| Operation Humidity | 30%~60% | |
