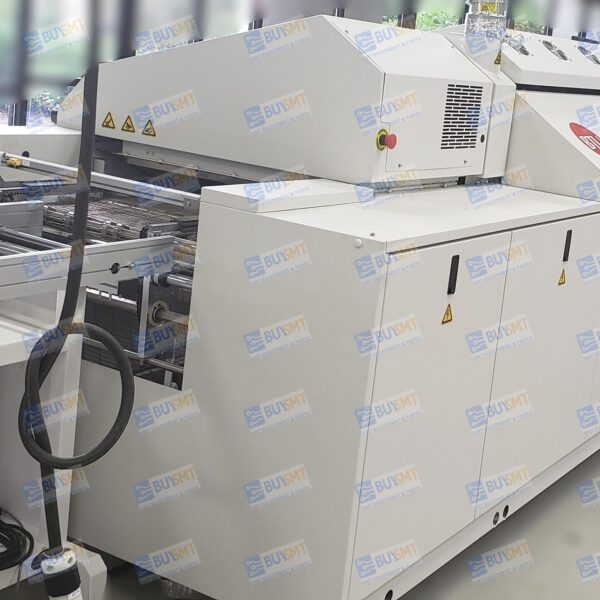

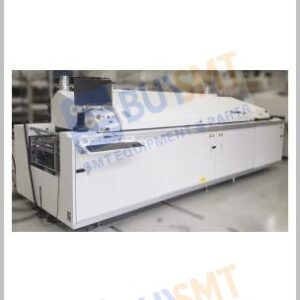

Lead-Free 8-Zone Reflow Oven BTU Pyramax 100A | Low-Hour 2022 Model for SMT Production

• LOW Hours
• Mint-like Condition
• Yr: 03/2022
• High end Air reflow oven
• Horizontal Air flow
• 8 Zones Forced Air Convection – Forced Impingement Convection with side to side gas recirculation
    Each zone utilizes BTU’s Porcupine II heating element: fast response time and high reliability
• Cooling zone equipped with 8 Cooling Fans
• Product clearance 2.0 in / 51 mm
• Rail Edge Conveyor
• Programmable (recipe controlled) width adjust
• Programmable multi-port lubricator
• Belt deviation detection
• Belt “Stopped” alarm & over torque protection provided via slip clutch
• Alarm and motion messaging via WINCON (trademark)
• Temperature control handled by Sixteen (16) PID control loops
• Redundant independent electronic over temperature protection: If an over-temperature occurs, power to the heaters is removed and audible/visual alarm activates
• Smart Tracker:
    * allows the system to count products for a given recipe, detect product drop/lost and display a graphical view of the products
    * In the event of a product drop, an alarm will sound
    * manages oven SMEMA ready/busy logic for up and downstream
• Automatic shutdown sequencing
• Included on PC:
    User Documentation
    Maintenance Documentation
    Troubleshooting and Repair Documentation
    Hard Copy manual

• Total length 4.648 mm
• 8 top & 8 bottom zones
• Maximum temp. 350 Celsius
• Total Heated Length 00 inches / 254.0 cm
• Cooling length: 24 inches / 61.0 cm
• Exit Offload Area 20 inches / 50.8 cm
• Total System Width 60 inches /  152.4 cm
• Machine Weight 4,000 lbs. / 1,14 kg
• Power 480Y/277  94 Amp 3 Phase 50/60hz
• Max Temp 350 Celsius

• BTU’s Innovative Software Solutions:
  • Smart Power:
    reduce peak power usage and lower your connected load, cutting energy costs
    Benefit from automatic power optimization and achieve the fastest start-up and response times, all while keeping
    total power limited. Save money and enhance productivity with smarter energy management.

  • Energy Pilot:
    Automatically reduces reflow oven operating costs
    Takes advantage of idle time

  • Recipe Pro by ECD:
    • Automatic recipe generator:
    Select Convection Rate and Throughput Preference
    Select PCB Attributes
    Select Solder Paste
    • Reduces oven set-up time
    • Exclusive convection rate algorithm

• Profile Guardian:
    • Creates baseline for each recipe
    • Profile Guardian limits and baseline data are stored with the recipe
    • Designed to run continuously
    • Integrated to software GUI
    • Access level control
    • Fully redundant controller
    • Fully integrated with MES/factory communication
    • Enables product traceabilty when used with a barcode reader (barcode reader not included)

BTU Pyramax 100A meets &/or exceeds:
    ITW EAE Vitronics Soltec XPM2-820
    ITW EAE Vitronics XPM3m 820
    ITW EAE Vitronics Soltec Centurion CT820 Reflow Soldering Oven
    JUKI RS-800II reflow oven
    Manncorp CR8000 8-Zone SMT Reflow Oven
