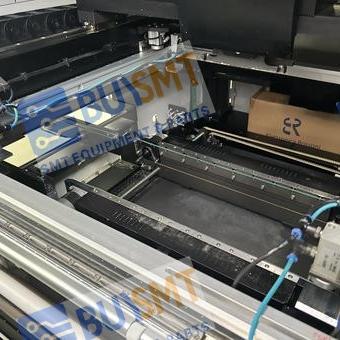

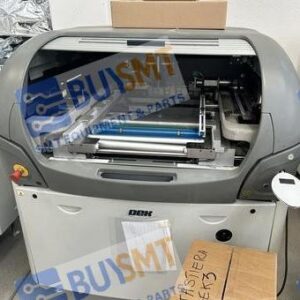

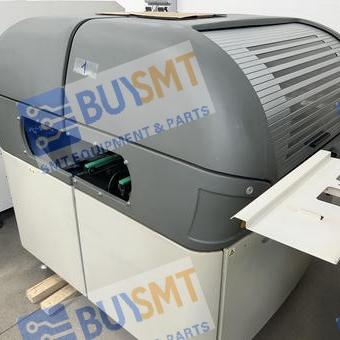

| Category | Specific Items | Specifications |
|---|---|---|
| Basic Configuration | Accuracy and Repeatability | 1.33 Cpk @ +/- 25μm # |
| Cycle Core Time | 14 seconds | |
| Max. Board Size (Print Area) | 508mm (X) x 508mm (Y) | |
| Print Speed | 2mm to 150mm/sec | |
| Squeegee Pressure Mechanism | Software controlled, motorised | |
| Tooling | Magnetic tooling pins: 19mm dia x 15 4mm dia x 15 | |
| Camera | Graphite digital camera, using IEEE 1394 interface. Single channel. LED lighting. FOV 5mm x 8.5mm | |
| Fiducial Recognition | Automatic fiducial teach and find | |
| Operating System | Windows XP | |
| Operator Interface | Colour TFT display, keyboard and trackball with DEK Instinctiv™ software | |
| Connectivity | RJ – 45LAN (networking) and USB2 interface available | |
| Printer Construction | One piece optimised welded frame | |
| ISCAN™ Machine Control | Motion control using CAN BUS network | |
| Camera Positioning | Rotary motors and encoders, with 4 micron resolution | |
| Stencil Loading | Manual with screen depth adjuster | |
| Stencil Alignment | Motorised via actuators X, Y and Theta | |
| Machine Interface | Upline and downline FMI included | |
| Squeegee | Clamped double trailing edge squeegee (1 set included) | |
| Documentation | Hard copy manuals comprising: Operator, Installation, Electrical Drawings. On – board technical manuals and tutorials supporting operator functions. CD containing manuals and tutorials | |
| Certification | CE | 98/37/EC 89/336/EEC 73/23/EEC Subsequent Amendments |
| ETL | UL61010A – 1 2nd Edition 2002 CAN/CSA – C22.2 No. 1010.1 – 92 | |
| Acoustic Noise Level | Less than 70dB 2003/1/EEC | |
| Services | Voltage | 100 Volts to 240 Volts +/-10% Single Phase 50/60Hz |
| Max Current @ 115V | 20 Amps with vacuum pump 6 Amps without vacuum pump | |
| Max Current @ 230V | 10 Amps with vacuum pump 3 Amps without vacuum pump | |
| Over Current Protection | An external circuit breaker ≤ 25 Amps is required to be fitted in line with the machine supply | |
| Air | To ISO 8573.1 Standard Quality Class 2.3.3 Pressure 5 bar to 8 bar at 5 Litres/min |
