SM471 PLUS

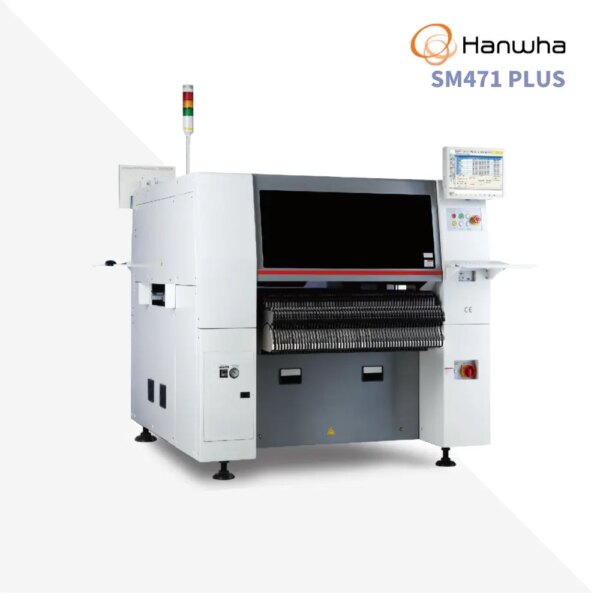

The SM471PLUS is a high performance chip shooter which applies two gantries equipped with 10 spindles per head as well as a new flying vision system.

Compared to the existing SM471 model, its placement speed is increased further to 78,000CPH, which is the highest in the world among chip shooters of the same class. n addition, it is basically applicable to components from 0402(01005inch) chips to maximum o 14mm IC components. Its actual productivity and placement quality is improved by applying high-speed and high precision electrical feeders. With two gantries and dual lane, the SM471PLUS supports

various production modes to maximize the productivity of SM series machines.

On-the-fly Placement Method

Owing to Techwin’s own On-the-fly image recognition technology聽which allows component recognition without stopping while moving after component pickup, placement speed is maximized by minimizing the moving time between the pickup position and placement position and reducing the recognition time to zero.

The highest applicability to long and large PCBs among machines of the same class

Mixed Use of Electric Feeder and Pneumatic Feeder

Mixed use of electric and pneumatic feeders in the same feeder base is available for SM series component placers. The investment in production can be minimized by using these feeders along with existing feeders.

Know more about SM Feeders

Easy Component Registration New Part Editor

A Drag & Drop component registration system, allowing registration of component information through automatic recognition and rotation by simply clicking the mouse. (When applying Elite2)

In addition, user convenience is further reinforced by unifying the on-line/off-line component registration systems.

Panorama View Function

Since large-sized components are not viewed in one screen, it is hard to adjust their pickup or placement positions. In order to remove such inconvenience, the panorama view function is added to allow large components to be viewed within the FOV of a camera.

Component Monitoring before/after Placement

Checks for nozzle contamination during production to prevent non-insertion and dumping of a large number of components in advance, ensuring high quality production.

Time of inspection – Before/after ANC; before/after component placement; and after component dumping

Multi-Vendor Component Management Function

聽

When the same components are supplied from different component supply devices, this function allows components to be used without changing a PCB file and downloading a new PCB file.

Detail

Dual lane and shuttle conveyor maximizes the

productivity of SM series component placers

Dual lane production maximizes the productivity of small boards and

the shuttle conveyor ensures extensibility to the production of large

boards.,
