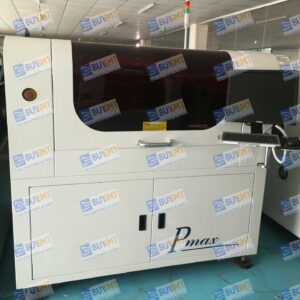

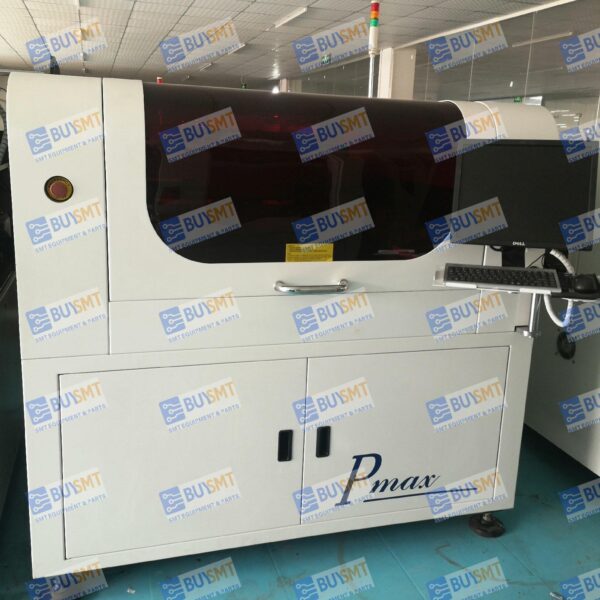

GKG PMAXII SMT Solder Paste Printer
Print up to 1,220mm x 800mm
The PMAXII printers utilize a patented mathematical calculating algorithm to ensure the machine’s high accuracy print alignment that easily achieves 01005 (0402 metric) printing.
Motorized Front and Rear Squeegees – Designed to meet the need of different pressures on the front and rear squeegees, each can be programmed independently while the functionality of self leveling prevents solder paste leakage. Various snap-off modes can also be selected to accommodate all types of PCB’s and paste.
Patented PCB “Flexible Auto Clamp” (FAC) System – The conveyor system includes a built in PCB snugger (side clamp) and top clamp system. Changing between each requires no change of hardware and is controlled by a simple mouse click.
Wiper System – The stencil cleaning has 3 modes: Wet, Dry, Vacuum. Each mode can be programmed individually or combined in any way. If auto cleaning is not necessary, the system allows manual cleaning within its operation menu, which shortens cleaning time and improves production efficiency.
2D Solder Paste Inspection System – The 2D paste inspection system can detect excessive/insufficient, presence/absence, and bridging.
Automatic PCB Thickness Control – Uses linear motor drives to perform the dynamic adjustment of the lift table. This superfine motion and lock mechanism maintains higher precision during the printing process.
Lift Table – Solid Cast Lift Table designed to meet the rigors and demands of a 7×24 manufacturing environment
Available Options:
Features:
1. GKG dedicated manual adjustment pre-lift platform: simple and reliable structure, low cost, convenient manual adjustment, can quickly realize the adjustment of the PIN pin jacking height of PCB boards with different thicknesses.
2. Image and optical path system: The uniform ring light and high-brightness coaxial light of the brand-new optical path system, together with the brightness function that can be adjusted steplessly, make all types of Mark points can be well recognized (including uneven ones) Mark point), suitable for tin-plated, copper-plated, gold-plated, HASL, FPC and other types of PCBs of different colors.
3. Scraper system: Slide rail type scraper system, which improves the running stability and long service life.
4. Cleaning system: The new type of wiping rubber strip ensures full contact with the stencil, increases the vacuum suction to ensure that the residual solder paste in the mesh is vigorously eliminated, and truly realizes the effective automatic cleaning function, three cleaning modes of dry and wet vacuum , the software can set the cleaning mode and cleaning paper length at will.GKG Full-Automatic Visual Printer Detail
| Model | PMAXII |
| Item | Performance |
| Machine Alignement capability | ±25 microns |
| Core Cycle Time | < 25 secs (Excluding printing & cleaning) |
| Product Changeover time | 5 mins |
| New Product Setup Time | 10 mins |
| Maximum Size (LxW) | 1220x 800 mm |
| Minimum Size (LxW) | 100x 65 mm |
| Thickness | 0.4~10 mm |
| PCB Thickness Adjustment | Auto leveling |
| PCB Support Methods | Magnetic pins, support blocks, auto table adjustment |
| PCB Clamping Methods | Retractable top clamp & motor controlled side clamp |
| PCB Max. Weight | 10 kg |
| PCB Edge Clearance | 3.5 mm |
| PCB Bottom Clearance | 23 mm |
| PCB Warpage | Max. 1% diagonally |
| Conveyor Direction | L > R, R > L, R > R, L > L (Software controlled) |
| Conveyor Height | Standard is 900mm ±20mm (If need any higher need to include footage support) |
| Conveyor Speed | Max. 1500 mm/sec |
| Conveyor Width Adjustment | Auto |
| Stencil Frame Size (LxW) | Adjustable, 737x 737 mm~1500 mm x 1250 mm |
| Print Head | Arc shape beam with 2 independent double linear guide motorized heads |
| Printing Table | Single / Double (Software select) |
| Adjustment Range | X: ±20 mm; Y: ±20 mm; Θ: ±2° |
| Squeegee Size | Metal: Two pair = 850mm & 1,250mm |
| Squeegee Pressure | 0 – 30 kgs (Programmable) |
| Squeegee Speed | 5 – 150 mm/sec |
| Squeegee Angle | Std. 60°, Option 45°, 50°, 55° |
| Cleaning System | Auto wet/dry/vacuum combination (User edit) |
| Vision Method | Single camera simultaneously Look Up/Look Down |
| Field of View (FOV) | 8 mm x 6 mm |
| Fiducial Type | Circle, triangle, square, diamond, cross |
| Fiducial Size | 0.5 ~ 4.0 mm |
| 20 Inspection | 100 windows to inspect missing, insufficient (Std.) |
| Hardware | LCD Monitor, Mouse & keyboard |
| Operating System (OS) | Window 10 or higher |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
| Power Supply | AC 220 V ±10%, 50/60 Hz, single phase |
| Air Supply | 4 ~ 6 Kgf/cm2 |
| Power Consumption | 3 KW |
| Dimension (Exclude signal lamp) | 2,020 (W) x 1,740 (D) x 1,524 (H) mm |
| Machine Weight | Approx.1800 Kg |
