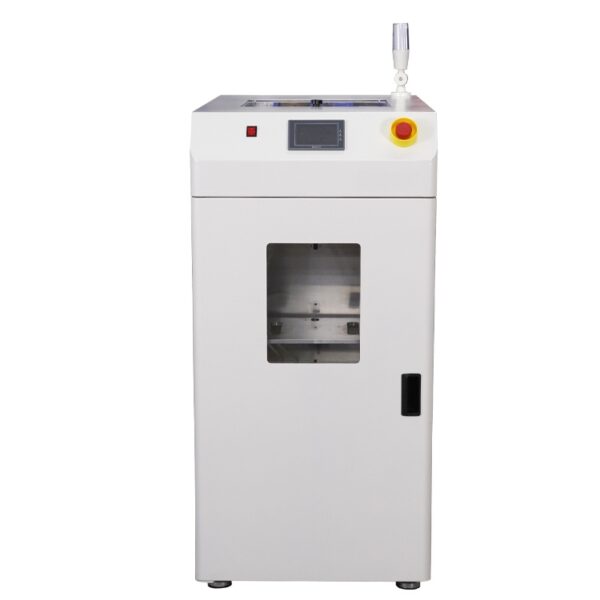

Vacuum Suction Board Loader with Anti-Static Design for Delicate PCBs

1, closed design to ensure the highest level of safety protection, the top safety cover can be opened, convenient maintenance of the machine hardware processing

2. The suction nozzle is fixed on the moving disk surface with a large powerful magnet, and the position of the suction nozzle can be adjusted to ensure that the circuit board is strongly sucked down. The position of the nozzle can be moved at will (for example, there are small holes on the PCB board, we can move the nozzle head within the PCB range for adjustment

3, stable and balanced width adjustment device (hand control screw adjustment)

4, the front of the machine operation into the PCB board, the door has an opening and install transparent acrylic plate can monitor the working condition inside without opening the door

5, one-time storage of PCB board quantity 220mm height, such as PCB board thickness of 1mm can be stored about 220PCS board

6. Smaller machines cover an area

7, the control system adopts Panasonic PLC control, the operation interface adopts touch screen, equipped with automatic alarm system

8, frame structure adopts sheet metal welding, surface spray painting treatment, color human-machine interface window

9, the lifting mechanism adopts the brake motor lifting setting, the step distance is adjustable, effectively shorten the board time, up to 300 PCBS (0.6 mm thick circuit board) can be stacked.

10, the load transfer structure adopts the stepper motor load transfer mode, start, stop can increase and deceleration setting, stable transmission, not easy to punch plate

11, with standard SMEMA signal port, can be connected with any other equipment online
