Feeder Selection Criteria Explained
In SMT (Surface Mount Technology) assembly lines, the selection of appropriate feeders significantly impacts both placement accuracy and production efficiency. The first factor to consider is the packaging size of the components and the corresponding tape width. Feeders are typically available in sizes ranging from 8mm to 72mm. For instance, 0402-sized components are commonly used with 8mm feeders, while larger components such as QFP packages require 44mm or 72mm feeders.

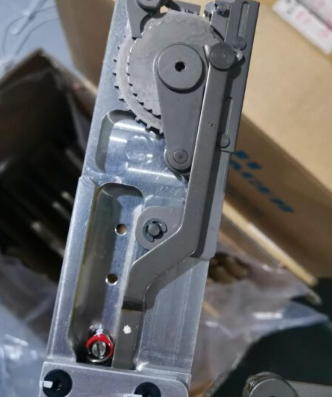

Next, the feeder type must be evaluated. Spring-type feeders are ideal for mid-to-low-speed production lines due to their simple structure and low maintenance cost. In contrast, pneumatic feeders offer higher stability and faster response, making them more suitable for high-speed placement scenarios.
Another critical factor is feeding precision. Key aspects include stepper motor resolution and tolerance of feeding pitch. We recommend choosing feeders with high-precision linear guides and tension control systems, capable of maintaining a feeding deviation of ±0.1mm or less.
Feeder Compatibility and Selection Scenarios
Feeder specification and equipment compatibility are crucial to successful SMT integration…
YAMAHA Pick and Place Machines
Panasonic NPM Series
Feeder Maintenance & Cleaning Best Practices
Maintenance intervals vary based on feeder type and production workload…
Standard Cleaning Procedure:
- Use an anti-static brush to remove surface dust.
- Wipe down gears and pressure levers using non-woven cloth soaked in isopropyl alcohol (≤70%).
- Use an ultrasonic cleaner at 40kHz for 3–5 minutes for precision guides.
- Apply high-temp-resistant lubricant on sliding parts (operating range: -20°C to 150°C).
- Test feeder stroke for smoothness manually after cleaning.
Real-World Compatibility Testing Results
Feeder-to-machine compatibility significantly affects feeding stability and placement efficiency…
FAQs
Q1: What should I consider when selecting an SMT feeder?
Key factors include tape width, drive type (spring/pneumatic), electrical interface, feeding accuracy, and compatibility with your placement machine.
Q2: How often should feeders be cleaned?
Spring-type: every 80–100 hours. Pneumatic: every 50–70 hours. High-density production lines should increase cleaning frequency by 30%.
Q3: How do I ensure feeder compatibility with my machine?
Check the feeder’s communication protocol, locking system, and mechanical alignment with your machine’s requirements. Use calibration tools to fine-tune feeder position.
